Ranorex Driver

Ranorex Driver is a lightweight service application based on a Ranorex test suite solution and is used to automate Windows desktop applications.

It exposes a standard W3C WebDriver interface on top of the Ranorex runtime. As a result, Ranorex Driver can be used with tests written using Selenium-based frameworks.

Note: Ranorex Driver is intended for automating desktop applications. Not all WebDriver features are implemented. Functionality such as alert handling, JavaScript execution, and cookie-related APIs is not available. See the list of supported commands in the Supported WebDriver API commands below.

Ranorex Driver is available as a standalone installation in the Ranorex Studio installation directory (for example, C:\Program Files (x86)\Ranorex\Studio\Bin).

It is designed to be lightweight. Ranorex Driver itself does not install additional Ranorex runtime libraries. Instead, it integrates with the Ranorex Studio installation on the same machine and uses the runtime provided by Ranorex Studio.

Note: The Ranorex Driver version you install must match the Ranorex Studio version on the machine. For example, if you have Ranorex Studio 11.3.1 installed, you must install Ranorex Driver 11.3.1.

Installation Steps

Ranorex Driver installation is straightforward. Follow these steps to complete it:

1. Run the Ranorex Driver installer, select the location of the Ranorex Studio bin folder, the default Port, and click Next.

2. Click Install to start the installation.

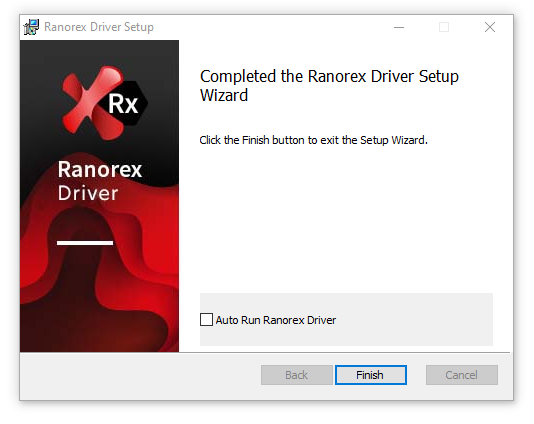

3. After the installation completes, you can choose to automatically run Ranorex Driver by selecting the corresponding checkbox and clicking Finish.

   Note: If you do not enable auto-start, you must start Ranorex Driver manually, navigate to the Ranorex Studio bin folder, and run RanorexDriver.exe.

Ranorex Driver Status

Once Ranorex Driver is running, a tray icon appears in the Windows notification area. Right-click the icon to see the current status of Ranorex Driver.

If the status is Connected, you can start performing your tests.

from selenium import webdriver
driver = webdriver.Remote(
    "http://127.0.0.1:7993",
    {
        "browserName": "Ranorex",
        "rx:app": "Calc",
        "rx:args": "",
        "rx:force": True,
        "rx:whitelist": ["Calculator", "Calc", "CalculatorApp"],
    },
)

When you connect to Ranorex Driver there are a few parameters to set. Review the following:

• browserName – Must always be "Ranorex".
• rx:app – Path or name of the application to start with the session, e.g., "test.exe" or "Calc".
• rx:args – Command-line arguments for the application.
• rx:force – If True, forces the current session to be aborted and restarted.
• rx:whitelist – List of additional process names to whitelist for the session.

Automating the Ranorex Demo Application with Ranorex Driver and Selenium

Download Ranorex Demo Application and extract the application into any folder of your choice.

The following example performs a simple test in the demo application:

from selenium import webdriver
from selenium.webdriver.common.by import By
import time

options = webdriver.FirefoxOptions()
options.set_capability("browserName", "ranorex")
options.set_capability("rx:app", r"C:\Users\user\Desktop\RxDemoApp.exe") #change this to where you put the demoapp.exe
options.set_capability("rx:args", "")
options.set_capability("rx:force", True)
options.set_capability("rx:whitelist", ["RxDemoApp"])

driver = webdriver.Remote(
   command_executor="http://127.0.0.1:7993",
   options=options
)
print("Application opened: " + driver.title)

print("Entering name")
driver.find_element(By.XPATH, "/form[@title>'Ranorex Studio Demo Appli']/?/?/tabpage[@index='0' and @controlname='RxTabIntroduction']/?/?/text[@accessiblename='Enter your name']").send_keys("Dave");
time.sleep(0.5)

print("Clicking On Submit")
driver.find_element(By.XPATH, "/form[@title>'Ranorex Studio Demo Appli']/?/?/tabpage[@index='0' and @controlname='RxTabIntroduction']/button[@text='Submit']").click()
time.sleep(0.5)


print("Clicking on Object Identification Tab")
driver.find_element(By.XPATH, "/form[@title>'Ranorex Studio Demo Appli']/?/?/tabpage[@accessiblename='Object identification']").click()
time.sleep(0.5)

print("Clicking on panel 1 button")
driver.find_element(By.XPATH, "/form[@title>'Ranorex Studio Demo Appli']/?/?/tabpage[@index='6' and @controlname='RxTabObject']/?/?/button[@controlname='button3']").click()
time.sleep(0.5)

element =  driver.find_element(By.XPATH, "/form[@title>'Ranorex Studio Demo Appli']/?/?/tabpage[@index='6' and @controlname='RxTabObject']/?/?/text[@accessiblerole='Text']")
print("Text On tree like UI Structure area: " + element.text)

#Selenium 4 feature take a screenshot on a specific object
element.screenshot('./screenshot.png')
time.sleep(0.5)


print("Clicking On Clear Button")
clearElement = driver.find_element(By.XPATH, "/form[@title>'Ranorex Studio Demo Appli']/?/?/tabpage[@index='6' and @controlname='RxTabObject']/button[@text='Clear']")
clearElement.click()
#Selenium 4 feature size and rect for position/object location
print(clearElement.rect)

time.sleep(0.5)
driver.close()

1. Create the demo_app_test.py file in any location and add the above code.

2. Open the Command Prompt. Navigate to the location where you saved demo_app_test.py and run:

   python demo_app_test.py

The demo application should start, and the automation should run.

Note: Selectors must be provided in RxPath format. You can generate RxPaths with Ranorex Spy and then use them in your Selenium code.

Supported WebDriver API commands

As mentioned previously, Ranorex Driver does not support the full WebDriver API. The following commands are currently supported:

• New Session
• Delete Session
• Status
• Set Timeouts
• Get Title
• Find Element
• Get Element Attribute
• Get Element Text
• Get Element Tag Name
• Is Element Enabled
• Element Clear
• Take Element Screenshot

For detailed information on these commands, see the W3C WebDriver specification

The specification describes the REST endpoints; equivalent methods are available in Selenium client libraries.
