Now that your data-driven test is set up, you can run it like any other test. During execution, the test case runs once per data row, and the report shows each iteration with the variable values used.
This is the completed sample solution with all the instructions of the previous chapters carried out and ready to run.
Theme: Run a data-driven test
Time: 5 minutes
Install the sample solution
- Unzip to any folder on your computer
-
Start Ranorex Studio and open the solution file
RxDatabase.rxsln
Run the test
- Confirm a data source is assigned to the test case (you should see it next to the container in the test suite view).
- Select the test case and click RUN.
Result

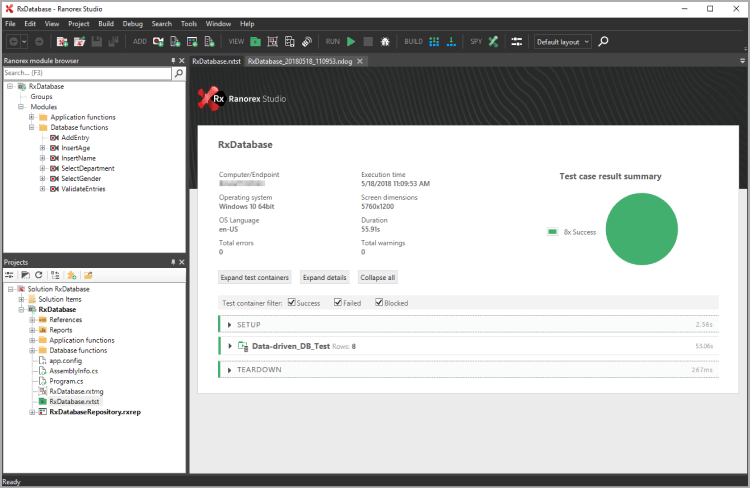

After the run finishes, the report opens. The rows of the data-driven test case appear in the results.
Result details for a data-driven test

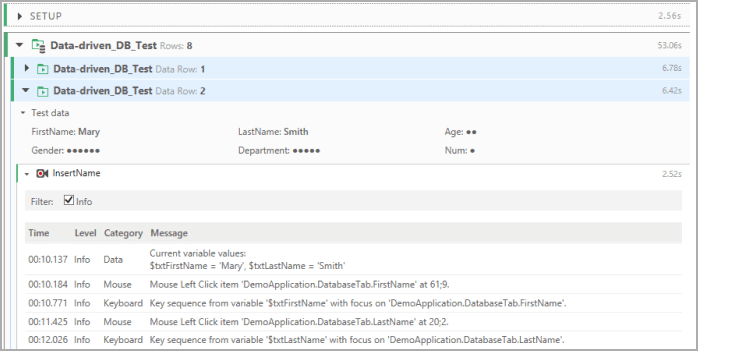

When you expand the test case, you can see it was iterated once per data row. In this sample, the test case runs 8 times, and each iteration shows the variable values used for that specific row.
How to read it: Expand the test case in the report to review each iteration and confirm the expected variable values were applied.
Microsoft Excel-free test execution on runtime machines
If your data-driven test uses Excel connectors and you want to run it in a Runtime or Remote Environment or with the Test Suite Runner, the target machine does not need Microsoft Excel installed.
Prerequisites
If Microsoft Excel is unavailable on the machine that runs the test, install the standalone Microsoft Access Database Engine 2016 Redistributable on that machine before running tests that use Excel data connectors.
Ranorex does not support using Microsoft Access Runtime alone for Excel data connectors. This limitation also applies to Microsoft 365 Access Runtime.
