Execute a test suite

Manage run configurations

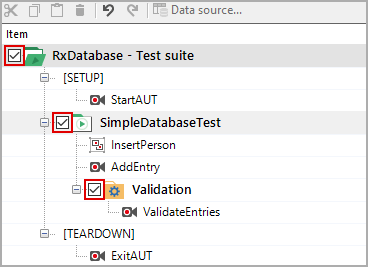

You can include and exclude test cases and smart folders from a test run. To do so, simply check or uncheck them in the test suite.

The current state of checked/unchecked test cases and smart folders is called a run configuration. You can save run configurations for reuse and switch between them using the drop-down menu in the test suite view.

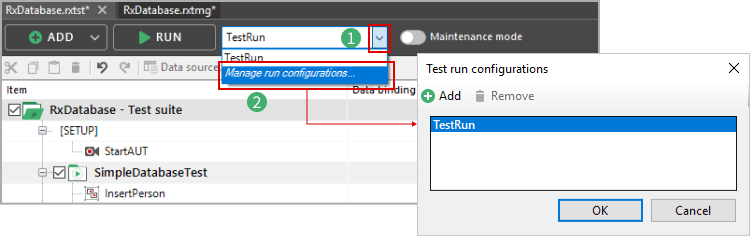

1. Click the run configurations drop-down menu

2. Click Manage run configurations…

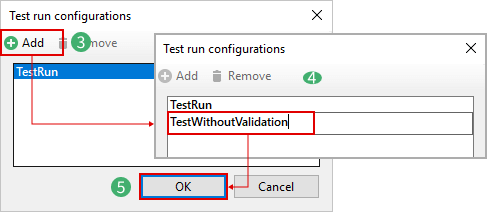

3. Click Add

4. Give the new run configuration a meaningful name
5. Click OK



Result(s)

The run configuration can be selected from the drop-down menu.

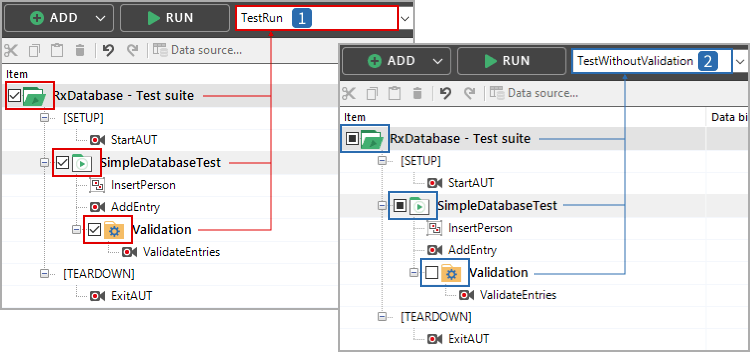

1. TestRun configuration including all test suite elements

2. TestWithoutValidation configuration excluding the validation smart folder

Similar to including/excluding test cases and smart folders, you can also enable and disable recording modules, code modules, module groups, and setup and teardown regions. Disabled items are not executed during a test run.

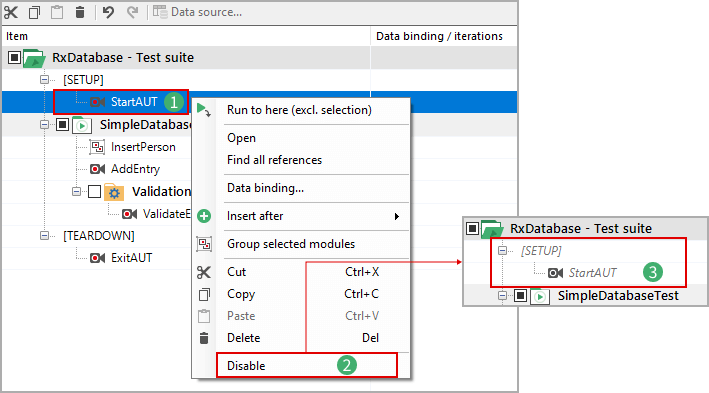

1. Right-click the item you want to disable

2. Click Disable

3. The item will be grayed out

Note: Disabling a module group disables all modules in this module group. Disabling a setup/teardown region disables all items in it.

By default, test cases and smart folders are run once during test execution. However, you may want to run them several times. You can do so with run iterations.

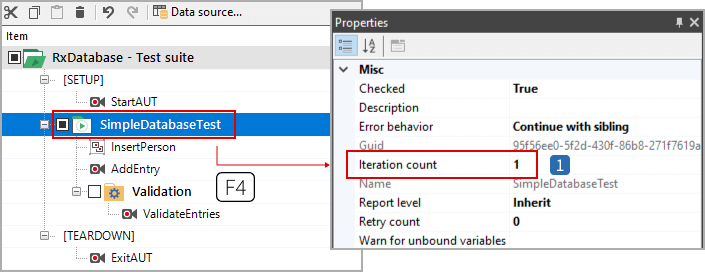

• With a test case or smart folder selected press F4.
• The Properties pad appears to the right of the test suite.
• Next to the Iteration count, set the desired number of iterations in Properties.

Result(s)

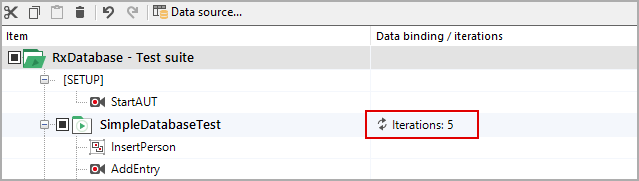

• The number of iterations appears next to the test suite item.
• In our example, the test case is iterated 5 times.

In UI testing, errors sometimes occur simply because the application under test is unresponsive. In these cases, one solution is to simply re-run parts of the test. You can do so with auto-retry. Test cases or smart folders with an auto-retry count will be rerun until they are either successful or all retries have been used up.

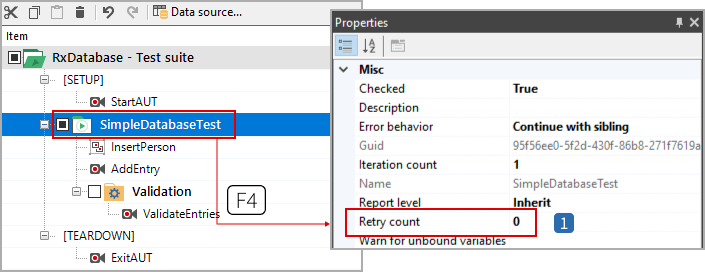

• Select the desired test case or smart folder.
• PressF4. The Properties pad appears to the right of the test suite.
• Next to Retry count, set the desired number of retries, in the Properties.

Note: If there are data bindings or run iterations, the retries will start at the point of failure. For example, if the failure occurred at iteration 3 of 5, that’s where the retry will start. Only test cases or smart folders that failed every single retry will be marked as failed in the report.

You can also set the report level of test cases and smart folders in the test suite. Report levels allow you to control what information appears in the report, and where it appears. This is especially useful for complex tests with many test cases and smart folders, to keep the report structured.

Errors are part of testing. This is why it’s important to tell Ranorex what to do when an error occurs. You can do so by configuring the error behavior of test cases and smart folders in the test suite.

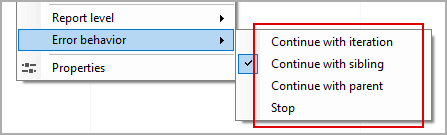

The error behavior is set up in the context menu of a test case or a smart folder. There are four different types, explained below.

Note: The default error behavior is Continue with sibling.

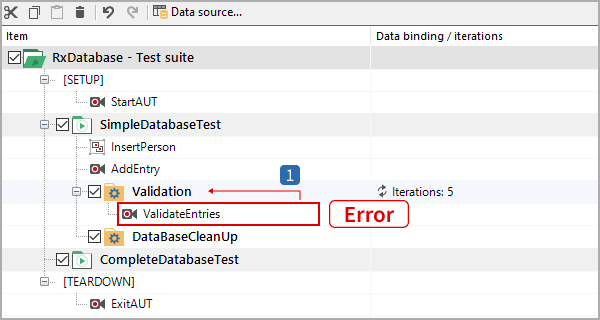

Continue with iteration

1. The test run continues with the next iteration of the smart folder Validation

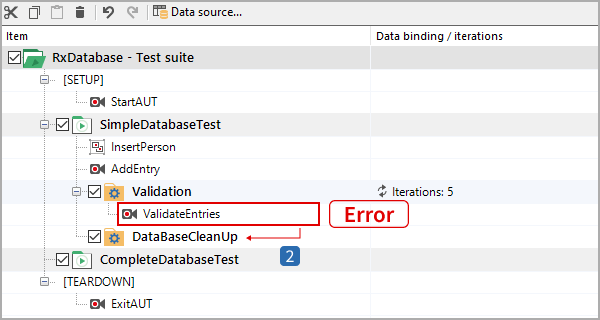

   Continue with sibling



2. The test run continues with the next sibling test case or smart folder. In our case, this is the smart folder DatabaseCleanUp.

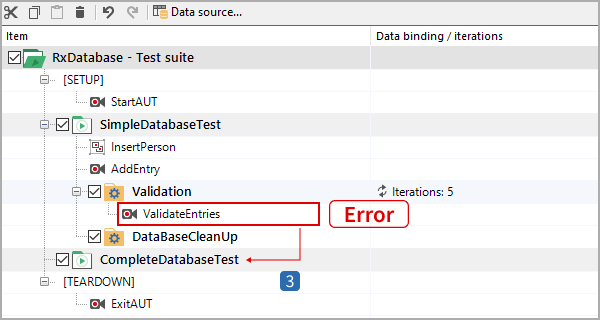

   Continue with parent



3. The test run continues with the next parent test case or smart folder. In our case, this is the test case CompleteDatabaseTest.

Stop

When the Stop error behavior is selected, an error immediately stops the entire test run.

Error behavior of setup/teardown regions

Setup and teardown regions follow a special, fixed error behavior.

• An error in the setup region immediately stops the test.
• If a module fails in the teardown region, the next module is run.

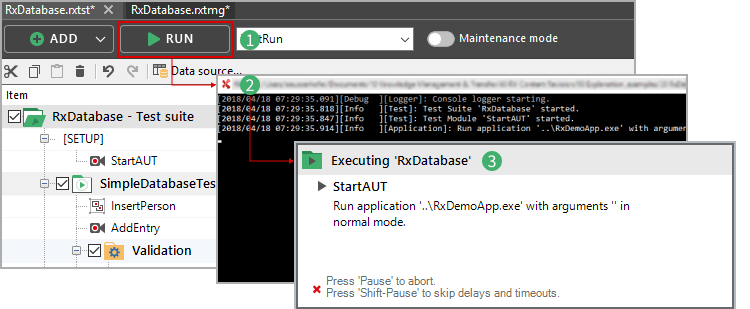

1. Click RUN

2. Watch Ranorex Studio execute the test

3. Observe the progress information during the test

Note: After you’ve clicked RUN, do not use the keyboard or mouse. Doing so would interfere with the test actions and cause a test failure.

Result(s)

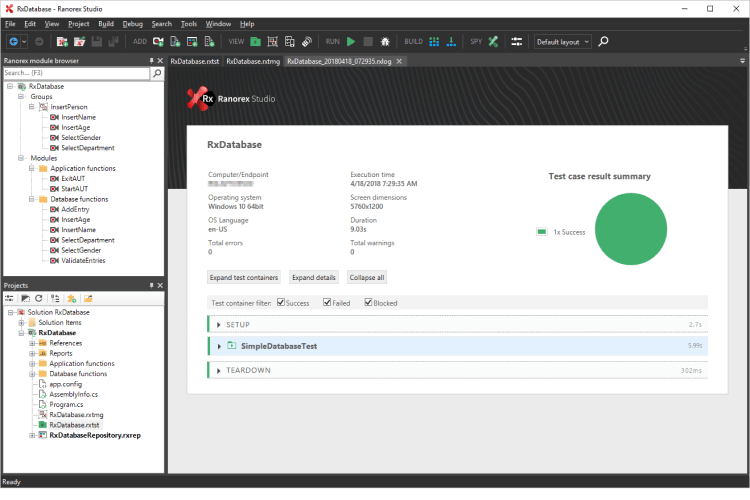

Once the test run finishes, the report appears.

The Test Suite Runner is a stand-alone program that executes test suites without Ranorex Studio. It opens automatically when you double-click a test suite file in Windows.

You can use the Ranorex Test Suite Runner to execute entire test suites, run certain test cases and smart folders, or just run a specific module.

In addition, you can create new run configurations the same way as in Ranorex Studio.

You can’t make changes to the test suite itself, however.

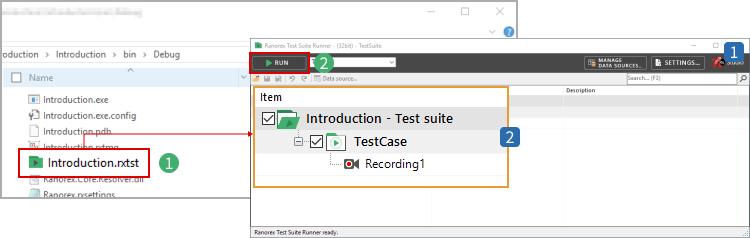

1. In Windows, double-click a test suite file. The file opens in the Test Suite Runner

2. Click RUN


1. Stand-alone Test Suite Runner

2. Currently loaded test suite
